Common Causes of Cutting Disc Breakage and How to Prevent Them

Common Causes of Cutting Disc Breakage and How to Prevent Them

When a cutting disc breaks unexpectedly, it's more than an inconvenience — it's a safety hazard, a productivity killer, and a cost multiplier. As a professional in the abrasives or metalworking industry, you've likely seen discs fail under pressure. But what's behind these failures, and how can you prevent them systematically?

Here’s a breakdown of the most common causes of disc breakage and what procurement managers, factory engineers, and OEM buyers should look out for.

1. Improper Storage and Humidity Exposure

Resin-bonded cutting discs are hygroscopic, meaning they absorb moisture over time. When stored in humid or high-temperature environments, the resin weakens, and structural integrity is compromised.

Best Practices:

• Store discs in a cool, dry warehouse below 30°C and <60% RH.

• Rotate inventory (FIFO method) to avoid over-aged stock.

• Avoid stacking heavy loads on top of disc cartons.

2. Wrong Disc for the Application

Using a disc that wasn’t designed for the target material (e.g., stainless steel vs. carbon steel) can quickly overload it. In mass production environments, this mistake often happens when operators use the same disc across stations.

Prevention Tips:

• Use ZA or ceramic discs for hard alloys and stainless steel.

• Label workstations with the correct disc spec.

• Provide quick-reference charts to operators and supervisors.

Cutting Disc Quick-Reference Chart

3. Over-Speeding Beyond Rated RPM

Each disc has a maximum operating speed (MOS). When used on high-RPM machines without proper matching, centrifugal force can exceed structural capacity — causing dangerous breakage.

Prevent It By:

• Matching disc diameter to machine RPM (e.g., 4.5" = max 13,300 RPM).

• Enforcing RPM checks on new machinery or retrofits.

• Using only EN12413 or MPA-certified discs.

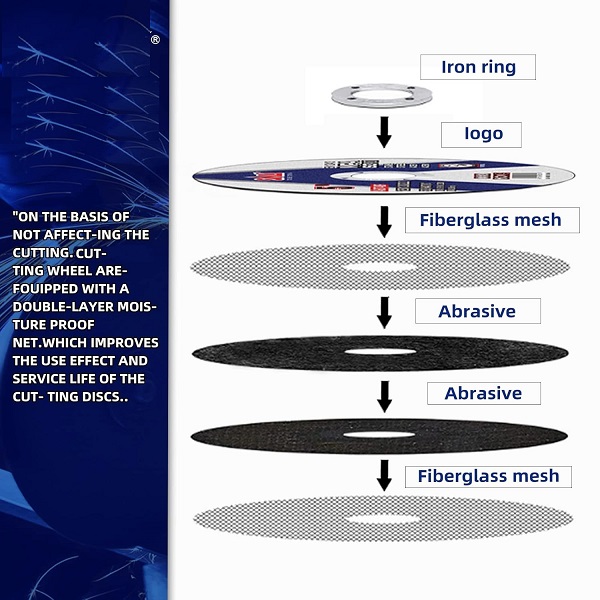

4. Inadequate Reinforcement (Mesh Layers)

Single-mesh reinforced discs are not designed for heavy industrial use. In fast-paced factory lines, the torque load increases, and lack of double or triple fiberglass mesh causes internal failure.

Spec You Should Demand:

• Double-mesh reinforcement with ≥ 235g/m² density.

• RAM could disclose mesh layer positioning in the structure.

• Avoid "light-duty" variants unless application is confirmed.

5. Lateral Pressure During Operation

Cutting discs are made for radial cuts only. When used at an angle (like a grinding disc), the side load causes flexing and structural failure.

Train Operators To:

• Always cut straight; never side-load.

• Use grinding wheels for material removal — not cutting discs.

• Report any disc vibration immediately.

6. Shelf Life Exceeded

Most resin-bonded discs have a shelf life of 3 years. Importers and large-scale buyers often overlook this when purchasing in bulk. Expired discs lose bonding strength and fracture under normal use.

Your Checklist:

• RAM could mark the production date on the disc.

• Enforce expiry tagging at warehouse level.

• Never mix old and new lots during production.

Final Thoughts

Cutting disc breakage is not just a product flaw — it’s a system failure that starts with procurement, continues in warehousing, and ends on the operator's bench. For industrial buyers, setting technical standards, training protocols, and inspection routines is essential.

By understanding the root causes and applying preventive practices, you’ll reduce downtime, lower cost-per-cut, and most importantly, improve workplace safety.
