How to Prevent Workpiece Burn: Causes, Solutions, and Best Practices

When a workpiece comes out of the grinding machine with blue, black, or dark marks on the surface, it's often a sign of thermal damage—commonly known as "burn." For professional buyers, plant engineers, and OEM operators who rely on precision grinding, understanding the root causes of burn and how to prevent it is critical to quality assurance and cost control.

What Is Grinding Burn?

Grinding burn refers to unwanted heat-affected zones (HAZ) on a workpiece due to excessive temperature during grinding. These burned areas often have altered metallurgy, reduced surface hardness, and higher residual stresses, which can lead to:

• Surface cracking or warping

• Premature failure of parts

• Reduced fatigue strength

• Non-conformance in inspection reports

Common Causes of Grinding Burn

1. Inappropriate Wheel Hardness
Using a grinding wheel that is too hard for the application causes excessive friction and heat. Hard wheels don’t release worn abrasives easily, leading to more rubbing than cutting.

2. Poor Coolant Flow or Positioning
A weak coolant stream or misaligned nozzle fails to carry away the heat generated at the grinding interface.

3. Aggressive Feed Rates or Depth of Cut
Overfeeding increases pressure and heat without allowing time for effective cooling.

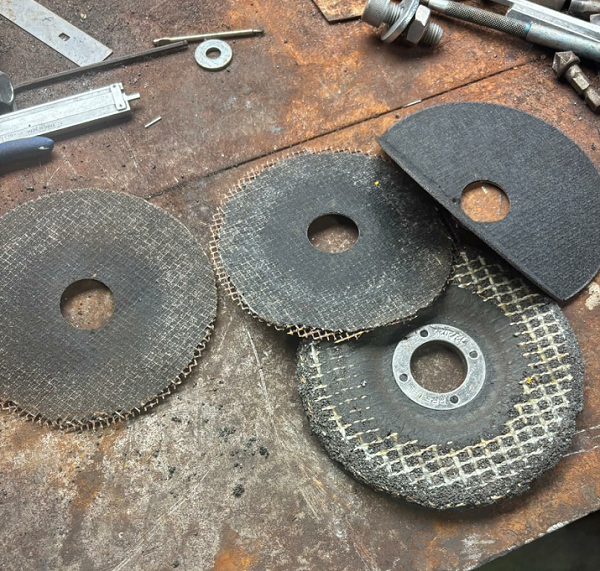

4. Dull or Loaded Grinding Wheel
A clogged wheel loses its sharpness and begins rubbing instead of cutting, significantly increasing surface temperatures.

5. Incorrect Wheel Spec for the Material
Using the wrong grit, structure, or abrasive type (e.g., AO on hardened steel instead of CBN) leads to poor thermal conductivity and cutting action.

How to Prevent Burn During Grinding

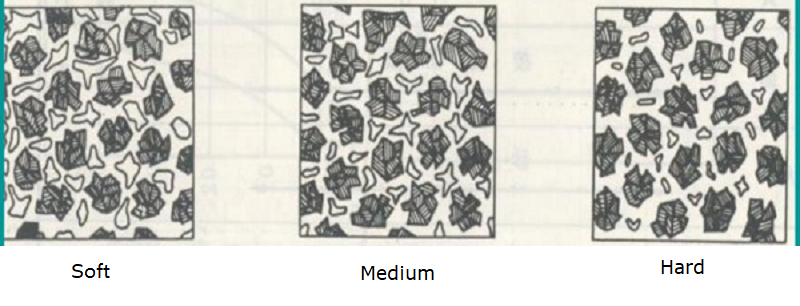

Choose the Right Wheel Hardness

• For hard metals, select a softer bond (e.g., N-P grade) to promote self-sharpening.

• Use open-structure wheels for better chip clearance and cooling.

Optimize Coolant System

• Ensure nozzles are correctly aligned to the contact zone.

• Use high-pressure, high-flow coolant with good filtration.

• Consider synthetic coolants with excellent thermal conductivity.

Adjust Process Parameters

• Reduce depth of cut and feed speed where possible.

• Use intermittent grinding to allow cooling intervals.

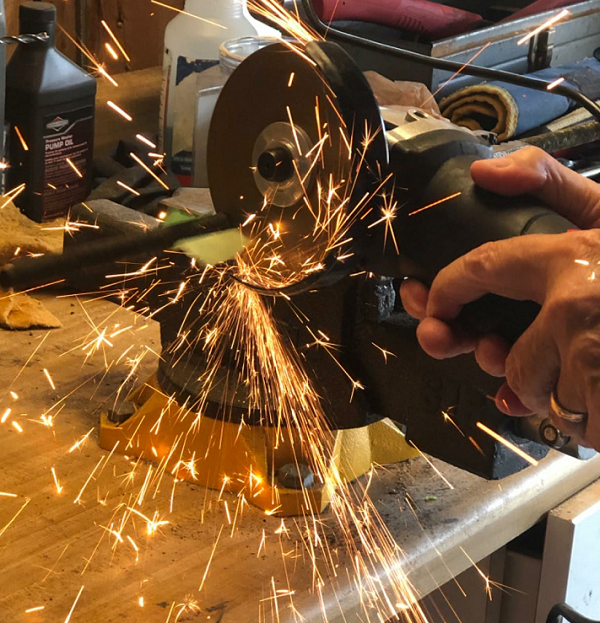

• Monitor spark patterns; heavy sparking may indicate excessive heat.

Dress the Wheel Regularly

• Use rotary diamond dressers or dressing sticks to expose fresh abrasive grains.

• Maintain a consistent dressing schedule based on part volume.

Match Wheel to Workpiece Material

• Use CBN for hardened steel, Silicon Carbide for non-ferrous, and Alumina Zirconia for tough alloys.

• Match grit size to surface finish and removal requirements.

For OEMs and Industrial Buyers: Why This Matters

Grinding burn isn’t just a technical problem—it’s a bottom-line issue. Burned parts lead to rework, scrap, inspection failures, and warranty claims. For companies in aerospace, medical, and automotive industries, burn can compromise compliance and certification standards.

By optimizing your grinding operations and selecting the right abrasive tools, you safeguard both production efficiency and brand reputation.
